CBRN Suit Monitoring: Why Telemetry Matters for Hazardous Environment Operations

A CBRN operator entering a contaminated zone is running two clocks simultaneously. One counts down the protective material's remaining resistance to the agent present. The other counts down the operator's physiological tolerance to the thermal load the suit imposes. Whichever expires first determines the mission duration, and historically neither has been measured in real time.

CBRN suit monitoring exists to convert both clocks from estimates into measurements.

THE PERMEATION CLOCK

Chemical protective materials do not block agents indefinitely. They resist permeation for a period determined by the material, the agent, the concentration and the temperature. ASTM F739 is the standard test method for measuring this, determining the resistance of protective clothing materials to permeation by liquids or gases under continuous contact and establishing normalised breakthrough times.

The critical nuance is that breakthrough time is not a fixed property of the garment. It is a property of the garment-agent-condition combination. Higher temperature accelerates permeation. Prior mechanical stress can alter it. Multiple agents can interact. A breakthrough time measured at 25 degrees in a laboratory does not directly apply to an operator working hard at 40 degrees in direct sun.

The NFPA protective ensemble standards for first responders to CBRN incidents build on this test methodology to define ensemble-level performance requirements, and NIOSH research on permeation test cell design illustrates how much methodological detail sits underneath a single breakthrough number.

Telemetry's role is to track the actual conditions the garment has experienced - cumulative time in contaminated atmosphere, measured temperature at the material surface, and detected agent concentration - and convert a static laboratory breakthrough time into a live, condition-adjusted exposure budget.

THE THERMAL CLOCK

The second clock is usually the binding one. Encapsulating CBRN ensembles are, by design, vapour-impermeable, which means the wearer's primary cooling mechanism is unavailable. Metabolic heat accumulates with almost nowhere to go.

The NIOSH criteria document on occupational heat exposure addresses this directly, covering the effects of clothing on heat exchange and physiological monitoring approaches. The operational conclusion drawn across emergency services and military CBRN units is consistent: in encapsulating protection, mission duration is limited by heat strain long before it is limited by air supply or barrier performance in most temperate conditions.

Continuous physiological monitoring changes the management of this from cohort-based to individual. Work-rest cycles derived from wet bulb globe temperature protect a notional average operator. Core temperature and heart rate trajectory protect the specific operator who is under-acclimatised, dehydrated or working harder than their teammates.

WHAT A CBRN TELEMETRY STACK CONTAINS

Operator physiology

ECG and heart rate variability, core temperature estimation, skin temperature, respiration, hydration proxies and motion-derived work rate. The value is in trajectory: a core temperature that is rising at a given rate projects a time to threshold, which is a far more useful output than the current value.

Environment inside and outside the barrier

External agent detection, internal atmosphere monitoring, radiation dosimetry, temperature and humidity both sides of the barrier. Internal monitoring is the element that detects breach, and it is frequently omitted because it is harder to instrument.

Ensemble state

Air supply pressure and remaining duration, filter loading, seal and closure status, and suit internal pressure where positive pressure is maintained. Equipment state usually degrades before physiology does, which is why the suit engineering telemetry stream often provides the earliest warning.

Team and command layer

Position, team mesh connectivity, casualty indication and aggregated team state to the incident commander. Pulse.Land provides this aggregation function for ground operations, fusing environmental, human performance and tactical sensors into a single operator state signal streamed to command.

THE DECONTAMINATION CONSTRAINT

CBRN differs from every other domain in one respect that shapes the entire technical design: everything that goes into the hot zone must come out and be decontaminated, or be destroyed. This constrains smart PPE more severely than any other application.

Sensors and electronics must survive aggressive chemical decontamination repeatedly without calibration drift. Cable runs and connectors must not create decontamination traps where agent can persist. Anything mounted outside the barrier must be either decontaminable or economically disposable. And the entire assembly must be verifiable as clean before the operator can unseal.

Any CBRN monitoring proposal that has not addressed decontamination survivability with test evidence has not addressed the hardest constraint in the application.

VALIDATING CBRN MONITORING SYSTEMS

Validation for CBRN monitoring has to happen in three environments, and skipping any of them leaves a gap.

• Laboratory. Sensor accuracy, permeation characterisation and material qualification under controlled conditions using standardised methods.

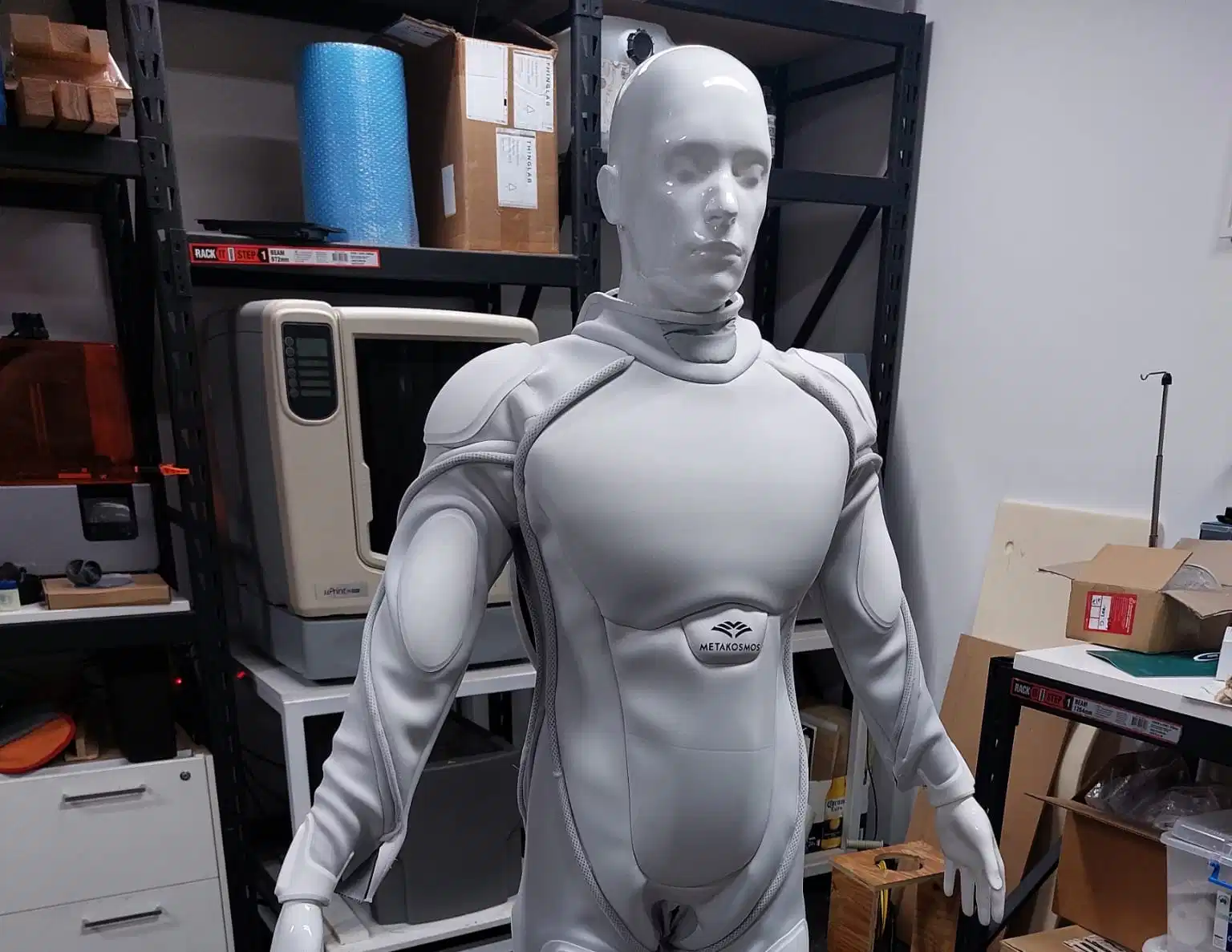

• Simulated operational. Full ensemble on an instrumented human surrogate in agent exposure chambers and thermal stress rigs, generating measurement without operator risk.

• Field deployment. Instrumentation carried into live hazard zones through platforms such as HELIOS, where CBRN environments are one of the four deployment domains alongside deep ocean, stratosphere and orbital analogue conditions.

The middle stage is the one that most programmes compress, usually because surrogate infrastructure is expensive. It is also the stage that catches the integration failures - seal degradation at sensor penetrations, thermal effects on calibration, ergonomic interference with donning - that field deployment discovers expensively.

OPERATIONAL BENEFITS THAT JUSTIFY THE INVESTMENT

The business case for CBRN monitoring rests on four measurable effects rather than on general safety improvement.

• Extended safe mission duration. Individualised limits allow operators with margin remaining to continue, where cohort-based limits would have withdrawn the whole team.

• Reduced casualty rate. Heat casualties in CBRN training and operations are common and largely preventable with trajectory-based alerting.

• Defensible exposure records. Per-operator, per-incident records of agent exposure and thermal load support medical surveillance and legal defensibility.

• Equipment lifecycle management. Cumulative exposure tracking per garment supports condition-based retirement rather than fixed-interval disposal.

The fourth effect is often the fastest to pay back financially, because CBRN ensembles are expensive and frequently retired on schedule rather than on evidence.

INTEGRATING MONITORING INTO EXISTING CBRN DOCTRINE

Telemetry does not replace CBRN doctrine; it instruments it. The integration question is which existing procedural decisions become measured rather than estimated.

Entry authorisation currently rests on environmental assessment and a standard work period. With monitoring, it can additionally reflect each operator's baseline state, prior exposure history and acclimatisation status, so that an under-recovered operator is identified before entry rather than during it.

Withdrawal decisions currently rest on elapsed time and supervisor observation. With monitoring, they rest on measured physiological trajectory, which typically extends useful working time for operators with margin remaining while withdrawing those approaching limits earlier than a fixed schedule would.

Post-incident medical assessment currently relies on operator recall of exposure duration and conditions. With monitoring, it rests on a recorded exposure profile, which materially improves both immediate clinical decision-making and long-term health surveillance.

Each of these is a doctrinal change rather than a technical one, and each requires training, procedural revision and command acceptance. Programmes that deploy the technology without the doctrinal work produce data that nobody has authority to act on.

WHERE THIS IS GOING

The direction across land domain operations is toward closed-loop response: ventilation and cooling that modulate with measured physiological state, automatic team alerting on detected breach, and command systems that recommend rotation before the operator recognises they need it. Every one of those depends on measurement that operators trust, and trust is earned through validation rather than asserted through specification.

FREQUENTLY ASKED QUESTIONS

What is CBRN suit monitoring?

Real-time measurement of an operator's physiological state, the environment inside and outside the protective barrier, and the ensemble's own condition during operations in chemical, biological, radiological or nuclear environments. Its purpose is to convert two implicit limits, material breakthrough time and physiological tolerance, into measured quantities that support withdrawal decisions.

How long can a CBRN suit protect against chemical agents?

It depends on the specific combination of material, agent, concentration and temperature rather than on the garment alone. Breakthrough times are established using standardised permeation methods such as ASTM F739, and higher temperature and mechanical stress can shorten them considerably relative to laboratory values.

What limits CBRN mission duration in practice?

In most temperate conditions, heat strain rather than barrier performance or air supply. Encapsulating ensembles block evaporative cooling, so metabolic heat accumulates with little means of rejection, and physiological tolerance is typically reached well before the protective material approaches breakthrough.
